Why hashLogger ?
Store logs in the form of meaningful tags to avoid complex parsing of stored logs in text format.
- Track log count dynamically
- Compatible for single and multiserver environments
- Built in error wrapper allows tracking and troubleshooting of errors easily
- Set threshold 'maximum' and 'minimum' to alert and store them
- Observe the behavior of application through dynamic charts
How it works ?
hashLogger tracks in three main categories Error, Warn and Info. When you include this module, three global functions 'err', 'warn' and 'info' are created (we can change the names of these global functions during configuration). We can use tags in different formats and scenarios to check by 'issue', 'functionality', 'function name', 'geography', 'server', 'user type'...etc.
Tag format
mainTag@subTag1#subTag2 .... #subTagN
- absoluteTag (or) tag String - it is full tag string 'mainTag@subTag1#subTag2 ..#subTagN'
- mainTag - it is the string before '@'. if no '@' then mainTag is absoluteTag
- subTag - these are strings separated by '#' after '@'
/**
* What functionalities are broken ?
*/
err('functonalityIssue')
err('no-data-inserted');
err('payment-error');
/**
* What are the reasons(issues) for breaking certain functionality ?
*/
err('functonalityIssue@reason')
err('no-data-inserted@db-connection-error');
err('payment-error@user-timeout');
/**
* What are the issues?
*/
err('issue')
err('db-connection-error');
err('user-timeout');
/**
* What are the issues and their 'info' or 'sub type' or 'reason' ... etc ?
*/
err('issue@issue-subtype')
err('db-connection-error@db-server-down');
err('authentication-error@incorrect-password');
err('authentication-error@no-user-found');
/**
* Which functonalities are broken because of certain issue?
*/
err('issue@functionality')
err('db-connection-error@no-data-inserted');
err('user-timeout@payment-error');
/**
*
* We can give multiple tags
*
*/
err('user-not-found@databaseError#log-in');
/**
* subTags are tracked individually, through above tag we can track
* 1) 'user-not-found' because of 'databaseError'
* 2) 'user-not-found' occured at 'log-in' functionality.
*
* If we want to track 'user-not-found' because of 'databaseError' at 'log-in' functionality
* we have to create on more tag like 'databaseError-at-log-in'.
* err('user-not-found@databaseError#log-in#databaseError-at-log-in') or
* err('user-not-found@databaseError-at-log-in')
*/
/**
* Examples
*/
err('databaseError@user-not-found#log-in')
err('databaseError@user-not-found#api')
err('databaseError@user-not-found#search')
err('paymentError@timeout')
err('no-response@third-party-server#google-store-api')
warn('no-response@user-input')
warn('sessionExpired@product-view')
In database these tags are stored in JSON format and grouped by mainTag. subTag stores the count (number of times it called). If no subTag is given (mainTag is absoluteTag), 'no-tag' is added by default. A tag 'tag-total' is used to store the total of all subTags in a mainTag group.
err('mainTagE1@subTagE11#subTagE12#subTagE13');
err('mainTagE2@subTagE21');
err('mainTagE3');
// calling again increments the count
err('mainTagE1@subTagE12')
warn('mainTagW1@subTagW11#subTagW12#subTagW13');
warn('mainTagW2@subTagW21');
warn('mainTagW3');
warn('mainTagW3@subTagW31');
info('mainTagI1@subTagI11#subTagI12#subTagI13');
info('mainTagI2@subTagI21');
info('mainTagI3');
info('mainTagI2@subTagI21#subTagI22');
/**
* Tags are stored in the following format
* This data object is used to plot the chart and we can set 'max' and 'min' threshold.
*/
{
time : 'timestamp',
data : {
err : {
'mainTagE1' : {
'subTagE11' : 1,
'subTagE12' : 2,
'subTagE13' : 1,
'tag-total' : 4
},
'mainTagE2' : {
'subTagE21' : 1,
'tag-total' : 1
},
'mainTagE3' : {
'no-tag' : 1,
'tag-total' : 1
}
},
warn : {
'mainTagW1' : {
'subTagW11' : 1,
'subTagW12' : 1,
'subTagW13' : 1,
'tag-total' : 3
},
'mainTagW2' : {
'subTagW21' : 1,
'tag-total' : 1
},
'mainTagW3' : {
'no-tag' : 1,
'subTagW31' : 1,
'tag-total' : 2
}
},
info : {
'mainTagI1' : {
'subTagI11' : 1,
'subTagI12' : 1,
'subTagI13' : 1,
'tag-total' : 3
},
'mainTagI2' : {
'subTagI21' : 2,
'subTagI22' : 1,
'tag-total' : 3
},
'mainTagI3' : {
'no-tag' : 1,
'tag-total' : 1
}
}
}
}
'err', 'warn' and 'info' returns an object that has a method 'm' to format strings, and property 'msg' to get that.
/**
* It tracks and returns the message.
*/
err('mainTag@subTag1#subTag2').m('hello %s','world').msg => 'hello world'
warn('mainTag@subTag1#subTag2').m('hello world').msg => 'hello world'
info('mainTag@subTag1#subTag2').m('hello world').msg => 'hello world'
Creating and Wrapping errors with 'err'
Creating Errors :
If first argument is 'tagString', it creates and tracks error object. name of the error will be 'mainTag' in tagString.
- set the error message throught method 'm'
- get the message through 'msg' property
- get error object uding 'obj' property
var errorObj = err('mainTag@subTag').m('error message').obj;
errorObj instanceof Error; // true
'error message' == errorObj.message; // true
'mainTag' == errorObj.mainTag; // true
throw errorObj;
throw err('mainTag@subTag').m('error message').obj;
Wrapping Errors :
If first argument is 'error Object', and second argument is 'tag String' then message of 'error Object' is appended to 'current message' that we set with method 'm' and assign the whole string to 'message' property of 'error Object'. We can get the modified error object through 'obj' property.
var baseError = new Error('base error message');
// track and wrap the error at the same time
var errorObj = err(baseError, 'mainTag@subTag').m('current error message').obj;
errorObj instanceof Error; // true
'current error message -> base error message' == errorObj.message; // true
Demo
I have created a demo app to explain how to use and configure hashLogger. Check hashlogger demo

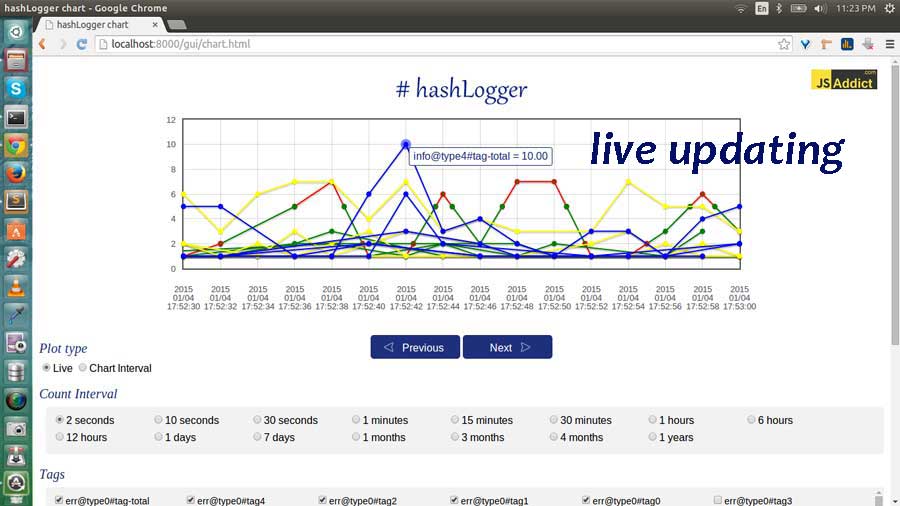

plotting live data

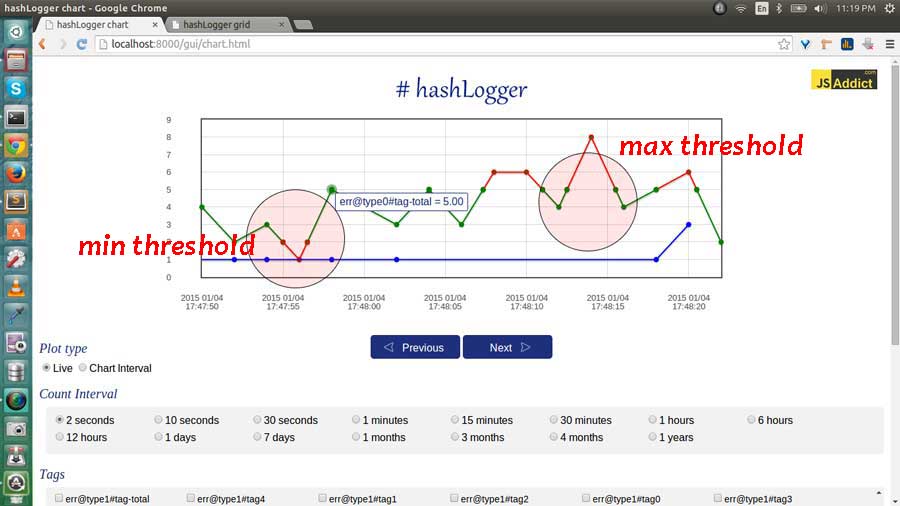

setting threshold

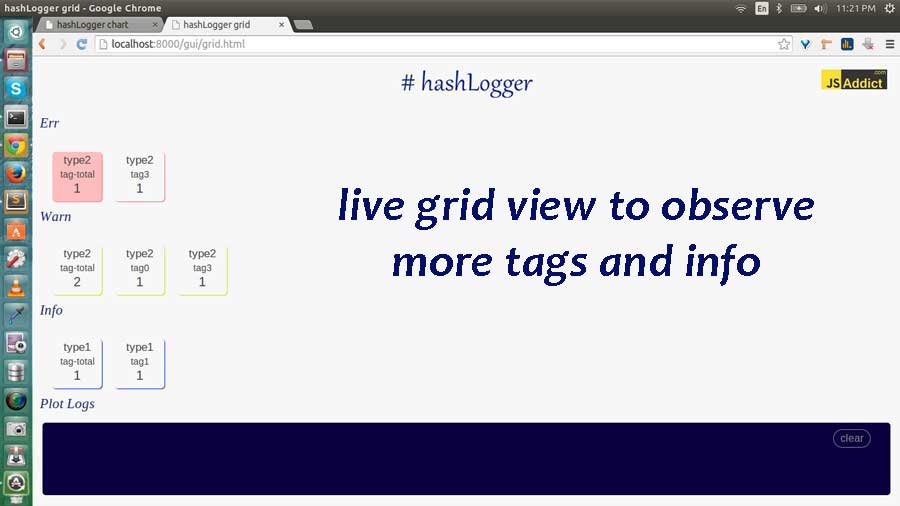

real time grid view

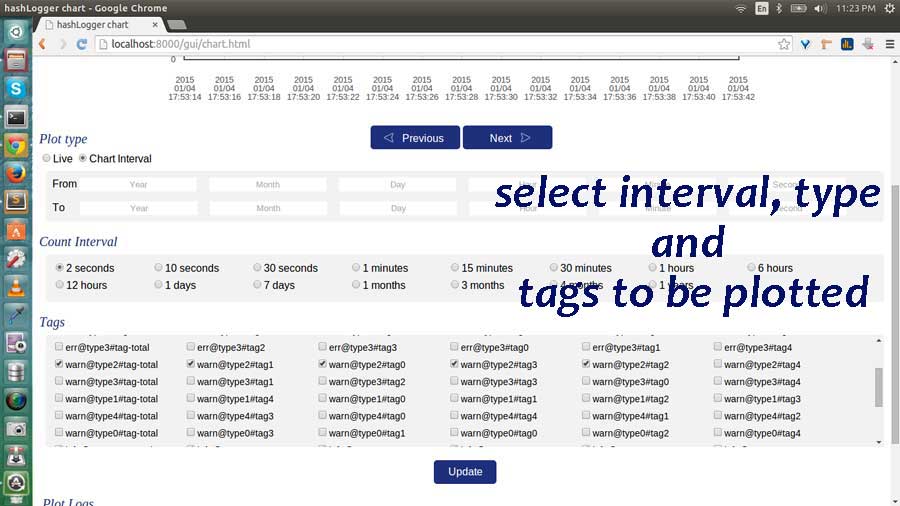

settings
How to use ?
I have created a demo app to explain how to use and configure hashLogger. Check hashlogger demo
install hashLogger and include GUI folder (you can find it inside hashlogger module) in your app.
var hashlogger = require('hashlogger');
/**
* appConfiguration and databaseConfiguration are mandatory. serverDetails is optional
* appConfiguration => configuring functionality
* databaseConfiguration => database settings for storing and getting data
* serverDetails => details of server instance like address, port, geography ..etc.
* (to identify logs by instance)
*/
hashlogger().init(appConfiguration, databaseConfiguration, serverDetails);
Server Configuration
- App
- Database
- Path
Configuring App
{
/**
* By default, global functions are err, warn and info. If any of those names are already used or we want
* custom names, we can overwrite those names here.
*/
api: {
err : 'custom error function name',
warn : 'custom warn function name',
info : 'custom info function name'
},
/**
* It is mandatory
* Anyone can access 'aggregatorUrl', to make it secure we use 'aggregatorToken'
*/
aggregatorToken : 'some complex string',
/**
* Url of the aggregation server
* It is mandatory field. It is the absolute url of the aggregator we are giving at 'path configuration'
* Example : If we have 3 servers, server1.app.com, server2.app.com, server3.app.com and we want server2
* to be aggregation server, then aggregatorUrl will be
* "http://server2.app.com/"+path-configuration-url
*/
aggregatorUrl: "http://aggregator server/"+path-configuration-url,
/**
* Should be a function
* It will be called on each instance repeatedly at minimum cron interval
* User can know count by instance
* parameters (config, serverInfo, instanceData)
* 'config' : configuration object. can use database methods as 'config.db[dbMethodName]'
* 'serverInfo' : If init is called with 3rd argument as server details, you can get that as 'serverInfo' to identify count by instance
* 'instanceData' : count data for the particular instance
*/
instanceDataHandler : function(config, serverInfo, instanceData){},
/**
* Should be a function
* It will be called only on aggregation server repeatedly at minimum cron interval
* parameters (config, serverInfo, aggregationData)
*
*/
aggregateDataHandler : function(config, serverInfo, aggregationData){},
/**
* Intervals the count has to be tracked
* Always minInterval type array elements should be divisible by first element
* and minInterval should be a factor for 60 (if type is seconds, minutes) for 24 (if type is hours)
*/
interval: {
seconds : [5, 15, 30],
minutes : [5, 15, 30],
hours : [1, 6, 12],
days : [1, 7],
months : [1, 3]
},
/**
* If any error occur inside the module, there are two options.
* Whether throw the error (If we do this whole application may be affected) or console the message
* In Testing or debugging mode, it is better to throw errors and In production mode, we can console the error
* Options : 'throw-error', 'log-error' or function(){}
* The function takes an object as parameter
* function({
* name : 'critical/no-track/no-info/no-plot',
* type : 'err/warn/info',
* message : 'error while updating tags',
* errorObj : err
* });
* 'name' : represents the level of error
* 'type' : name of global function in which the error occured
* 'message' : error message
* 'errorObj' : optional error object
* We can create custom function, that will alert during error.
*/
handleError : 'throw-error',
/**
* settings for err api function
*/
err : {
/**
* control error tracking using 'track'.
* if track : false, it won't track any err tags.
*/
track : true,
/**
* When "no arguments are passed to error" or "arguments are passed with proper format" or "some error occured inside error function" then,
* this is default error name, tag name and message.
* tagType will be default error name
*/
defaultTagType : 'globalError',
defaultMessage : 'Error!!',
/**
* While wrapping error object, msgSeparator is used to separate messages
*/
msgSeparator : ' -> '
},
info : {
track : true,
defaultTagType : 'globalInfo',
defaultMessage : 'Info'
},
warn : {
track : true,
defaultTagType : 'globalWarn',
defaultMessage : 'Warn'
},
/**
* Sets the threshold for tag count. (for minimum and maximum ) and those exceeds threshold will be tracked
* If no threshold then set alert : null
* format of alert tags 'global api function'+@+'tag-type'+tag-name
*/
alert : {
'err@type4#tag-total' : { max : 15, min : 10},
'warn@type1#tag2' : { max : 6},
'info@type1#no-tag' : { min : 6}
}
}
Configuring Database
{
/**
* All functions must have a callback function and should have atmost two parameters.
* first parameter is error, If no error, then first parameter should be null
* Second parameter is data
*/
/**
* Function to get all the tags that are used till now from the database.
* If no tags were there, call callback function with two null parameters.
* (no tags were stored in the beginning)
*/
getTags : function getTags(callbackFunction){},
/**
* If any additional tags were used, it is used to update tags.
* In updateTags, we have to overwrite the existing tags in database with the argument 'tags'.
* It is called on every cron interval
*/
updateTags : function updateTags(tags, callbackFunction){},
/**
* Function to get data between timestamp intervals
* Parameters ::
* type : 'seconds/minutes/hours/days/months/years' or 'alerts'
* interval : number ( in 5 seconds, interval is 5; in 1 hours, interval is 1) for 'alerts' it is null
* from : from timestamp
* to : to timestamp
* first parameter of the callback function will be error object
* second parameter will always be array of objects
*/
getData : function getData(type, interval, from, to, callbackFunction){},
/**
* Function to store data at particular time (timestamp)
* Parameters ::
* type : 'seconds/minutes/hours/days/months/years' or 'alerts'
* interval : number ( in 5 seconds, interval is 5; in 1 hours, interval is 1) for 'alerts' it is null
* timestamp : timestamp of data to be stored
* data : data to be stored
* first parameter of the callback function will be error object
* second parameter can be anything
*/
storeData : function storeData(type, interval, timestamp, data, callbackFunction){},
/**
* Function to get data for aggregation between timestamp intervals
* On every cron interval only mininum interval count is incremented. To compute count for
* big intervals we have to aggregate count of small (aggregation) intervals.
* ( To get count data for 1 hour interval, we have to aggregate count data of 1 minute interval.
* When we call 'getDataForAggregator('hour', 1, xxxxxx, xxxxx, callback)' , callback function
* has to return array of count objects of 1 minute interval )
*
* Parameters ::
* type : 'seconds/minutes/hours/days/months/years'
* interval : number ( in 5 seconds, interval is 5; in 1 hours, interval is 1)
* from : from timestamp
* to : to timestamp
* first parameter of the callback function will be error object
* second parameter will be array aggregation data objects
*/
getDataForAggregator : function getDataForAggregator(type, interval, from, to, callbackFunction){},
/**
* Function to get last inserted 'count' number of objects
* Parameters ::
* type : 'seconds/minutes/hours/days/months/years'
* interval : number ( in 5 seconds, interval is 5; in 1 hours, interval is 1)
* count : number of objects
* first parameter of the callback function will be error object
* second parameter will be array interval data objects
*/
getRecentData : function getRecentData(type, interval, count, callbackFunction){}
}
Configuring Path
In multiserver environment, all instances send their count to 'aggregatorUrl' of app configuration to aggregate count. We have to configure aggregator url path to handle the aggregation.
var hashlogger = require('hashlogger')();
var jsonParser = require('body-parser').json();
var aggregatorToken = 'token that you have given at app configuration';
/**
* here it shows how to configure expressjs
* body of POST request object is { token : 'aggregatorToken', data : instance count object}
*/
// handle POST request
app.post('/aggregate', jsonParser, function(req,res,next){
// check whether the token you received is valid or not
if(req.body.token == aggregatorToken){
// call handleAggregation() of hashlogger with received data as parameter
hashlogger.handleAggregation(req.body.data);
res.send('hi');
}else{
res.send('invalid');
}
});
UI Configuratioin
- configure server to get data for UI
- configure UI for chart and grid views
Configure server to get data for UI
GET request for 'data path' (path we define at UI configuration of chart and grid views) has to be configured and it should send data in JSON for different query formats.
query object to get data between intervals: data should be array of objects
{
format : 'interval',
type : 'seconds/minutes/hours/days/months/years',
interval : number ( in 5 seconds, interval is 5; in 1 hours, interval is 1),
from : from timestamp,
to : to timestamp
}
query object to get recent data: data should be array of objects
{
format : 'recent',
type : 'seconds/minutes/hours/days/months/years',
interval : number ( in 5 seconds, interval is 5; in 1 hours, interval is 1),
count : number ( get last inserted 'count' number of data objects)
}
query object to get data greater than or equal to timestamp: data should be array of objects
{
format : 'timestamp',
type : 'seconds/minutes/hours/days/months/years',
interval : number ( in 5 seconds, interval is 5; in 1 hours, interval is 1),
timestamp : xxxxxx
}
configure UI for chart and grid views
- app
- chart
- grid
configure app GUI
These are configuration settings for both grid and chart view
file to edit : gui/config/app.js
/**
* url to get data from server through GET request
*/
dataUrl = 'http://localhost:8000/plot-data';
/**
* interval to regularly update data in milliseconds
*/
plotInterval = 1000;
/**
* set maximum and minimum threshold
*/
alertTags = {
'err@type1#tag1' : { max : 5, min : 2},
'warn@type4#no-tag' : { min : 2},
'info@type3#tag-total' : { max : 2}
}
/**
* minimum interval in server app configuration
*/
minInterval = {
type : 'seconds',
interval : 2
}
/**
* maximum number of successive update failures after which data updation stops
*/
maxUpdateFailures = 5;
configure chart GUI
These are configuration settings for chart view
file to edit : gui/config/chart/app.js
/**
* delay in milliseconds after plot pan event to update data
*/
plotEventDelay = 700;
/**
* all tags that are used
* If all tags are stored in the server, then define 'allTagsUrl' and set 'allTags = null'
*/
allTags = {
err : {
mainTagE1 : ['no-tag','tag0e','tag5ew','tag-total'],
mainTagE2 : ['tag1e','tag7e','tag-total']
},
warn : {
mainTagW1 : ['no-tag','tag8w','tag2ew','tag-total'],
mainTagW2 : ['tag1w','tag40w','tag-total']
},
info : {
mainTagI1 : ['no-tag','tag11i','tag21i','tag-total'],
mainTagI2 : ['tag10i','tag4ew','tag-total']
}
}
/**
* tags to be plotted by default
*/
tagsToBePlotted = {
err : {
mainTagE1 : ['tag0e','tag-total'],
mainTagE2 : ['tag-total']
},
warn : {
mainTagW2 : ['tag40w']
},
info : {
mainTagI1 : ['tag-total'],
mainTagI2 : ['tag10i']
}
};
/**
* If all tags are stored in the server, then set 'allTags = null' and assign server url to allTagsUrl
*/
allTagsUrl = 'http://localhost:8000/get-tags';
Chart view uses jQuery Flot library. Refer jQuery Flot for configuration settings. We can set different configurations for 'err', 'warn', 'info', 'mainTag' and 'tags' individually.
file to edit: gui/config/chart/plot-draw-default.js
/**
* configuration that applies to all tags.
*/
var defaultDataConfiguration = {};
/**
* color to indicate threshold values
*/
var alertColor = '#FF0000';
We can configure based on category and tags in these files
gui/config/chart/plot-draw-err.js, gui/config/chart/plot-draw-warn.js, gui/config/chart/plot-draw-info.js
Setting plot options
file to edit: gui/config/chart/plot-draw-options.js
/**
* options for jquery flot library
*/
var plotDefaultOptions = {};
